Product Details
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: DMP
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $1.9-$28.3
Packaging Details: Carton
Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards
|
Name:
|
Flexible Shaft Coupler
|
Material:
|
Aluminum
|
Flexibility:
|
Flexible
|
Connection Type:
|
Set Screw
|
Torsional Stiffness:
|
Low
|
Color:
|
Silver
|
|
Name:
|
Flexible Shaft Coupler
|
|
Material:
|
Aluminum
|
|
Flexibility:
|
Flexible
|
|
Connection Type:
|
Set Screw
|
|
Torsional Stiffness:
|
Low
|
|
Color:
|
Silver
|

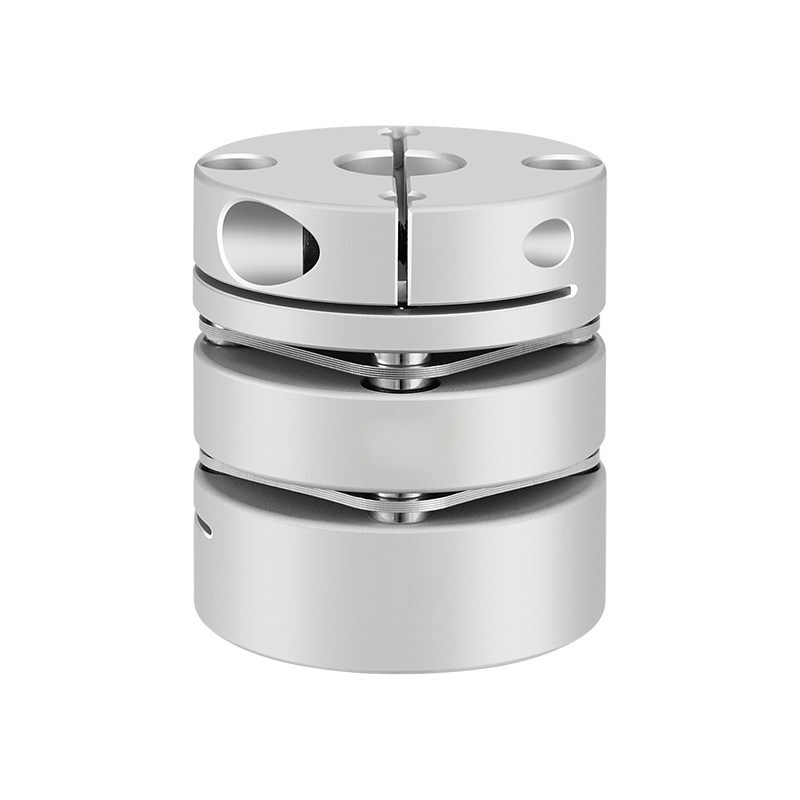

High Precision Single or Double Diaphragm Couplings Easy Installation
Company Introduction:SEXGL Coupling deliver unparalleled accuracy and durability in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea.
Characteristics
Couplings with reliable quality have a relatively long service life under normal use and maintenance conditions. For example, for roller chain couplings, as long as regular lubrication and maintenance are carried out, the wear of the chains and sprockets can be effectively controlled, enabling stable operation for a long time and reducing equipment maintenance and replacement costs.
Parameter Table
| Model Specifications | d1 | d2 | D | D1 | L | L1/L2 | F | W | F | M | Locking torque | Bushing Style | ||
| Minimum | maximum | Minimum | maximum | |||||||||||
| DMP26C | 0 | 10 | 5 | 10 | 26 | -- | 35 | 11.5 | 7 | 2.5 | -- | M3 | 1.5 | A |
| DMP34C | 5 | 14 | 5 | 14 | -- | A | ||||||||
| 5 | 9 | 5 | 14 | 45 | 14.9 | 9.4 | 3.3 | 4.5 | B | |||||
| 5 | 9 | 5 | 9 | 34 | 21.6 | M4 | 2.5 | C | ||||||
| 5 | 14 | 5 | 14 | 33.5 | 11.6 | 4.1 | 3.1 | D | ||||||
| DMP39C | 8 | 16 | 8 | 16 | 49 | 15 | 10.8 | 4.1 | 4.5 | A | ||||
| 8 | 16 | 8 | 16 | 39 | -- | M4 | 2.5 | D | ||||||
| DMP44C | 8 | 19 | 8 | 19 | -- | 39 | 13.6 | 2.7 | 4.6 | A | ||||
| 8 | 19 | 8 | 15 | 50 | 15 | 11 | 4.5 | 4.5 | B | |||||
| 8 | 15 | 8 | 15 | 44 | 29.6 | M4 | 2.5 | C | ||||||
| 8 | 19 | 8 | 19 | -- | 40 | 13.6 | 5 | 3.9 | D | |||||
| DMP56C | 10 | 25 | 10 | 25 | -- | A | ||||||||
| 10 | 25 | 10 | 19 | 63 | 20 | 12.3 | 5 | 6.5 | B | |||||
| 10 | 19 | 10 | 19 | 56 | 38 | M5 | 4 | C | ||||||
| 10 | 25 | 10 | 25 | -- | 56 | 20 | 5.6 | 5 | D | |||||
| DMP68C | 12 | 30 | 12 | 30 | -- | A | ||||||||
| 12 | 30 | 12 | 24 | 74 | 24 | 14 | 6 | 7.8 | B | |||||
| 12 | 24 | 12 | 24 | 68 | 46 | M6 | 8 | C | ||||||
| 12 | 30 | 12 | 30 | -- | 68.8 | 24 | 8.8 | 6 | D | |||||
| 16 | 38 | 16 | 38 | -- | A | |||||||||
| 16 | 38 | 16 | 28 | 98 | 30 | 22 | 8 | 9.5 | B | |||||
| DMP82C | 16 | 28 | 16 | 28 | 82 | 56 | M8 | 16 | C | |||||
| 16 | 38 | 16 | 38 | -- | 82.5 | 30 | 9.5 | 6.5 | D | |||||
| DMP94C | 20 | 40 | 20 | 40 | 94 | -- | 98.6 | 30 | 22 | 8.3 | 9.5 | A | ||
| DMP104C | 26 | 45 | 26 | 15 | 104 | -- | 101.6 | 30 | 22 | 8.3 | 9.5 | A | ||
