Product Details
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: C16
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 200-3900
Packaging Details: Carton with foam
Delivery Time: 7-14
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Worldwide delivery
|

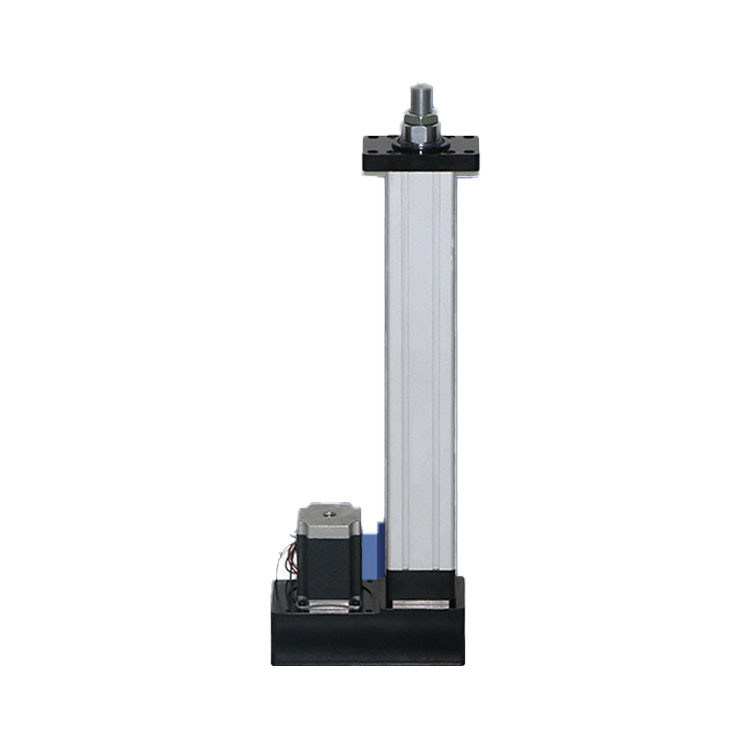

Name:
|
Electric Cylinder
|
Rated Torque (N ·m):
|
0.16
|
Repeatable Positioning Accuracy(mm):
|
±0.02
|
Max Thrust(N):
|
400
|
Max Speed(mm/s):
|
100
|
Max Stroke (mm):
|
300
|
Max Load (kg):
|
8
|
|
Name:
|
Electric Cylinder
|
|
Rated Torque (N ·m):
|
0.16
|
|
Repeatable Positioning Accuracy(mm):
|
±0.02
|
|
Max Thrust(N):
|
400
|
|
Max Speed(mm/s):
|
100
|
|
Max Stroke (mm):
|
300
|
|
Max Load (kg):
|
8
|
| C16 | |||
|---|---|---|---|
| Standard motor output (W) | 50W | Stepper 28 | |
| Rated torque(N *m) | 0.16 | 0.09 | |
| Repeatable positioning accuracy(mm) | ±0.02 | ||
| Screw specification | 802 | 802 | |
| Max thrust(N) | 400 | 220 | |
| Max speed (mm/s) | 100 | 40 | |
| Max stroke(mm) | 300 | ||
| Max load (kg) | 8 | ||
| Screw grade | C7 Rolling 0802(Slenderness ratio1:50) | ||
| Piston rod rotation angle | ±0.7 degree | ||
| Max drive torque(Nm) | 0.5 | ||
| Basic weight Omm stroke(kg) | 0.248 | ||
| Weight added per 100mm(kg) | 0.274 | ||
| Magnetic switch | CS1-H-1M | Contact type reed switch,wire length 1m | |
| CS1-HN-3M | Contactless transistor NPN type,wire length 3m | ||
| CS1-HP-3M | Contactless transistor PNP type,wire length 3m | ||
