Product Details
Place of Origin: China
Brand Name: SXEGL
Certification: CE/EPA/FCC/ROSH/ISO
Model Number: C32
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 100-700
Packaging Details: Carton and foam
Delivery Time: 5-14
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Worldwide delivery
|
Name:
|

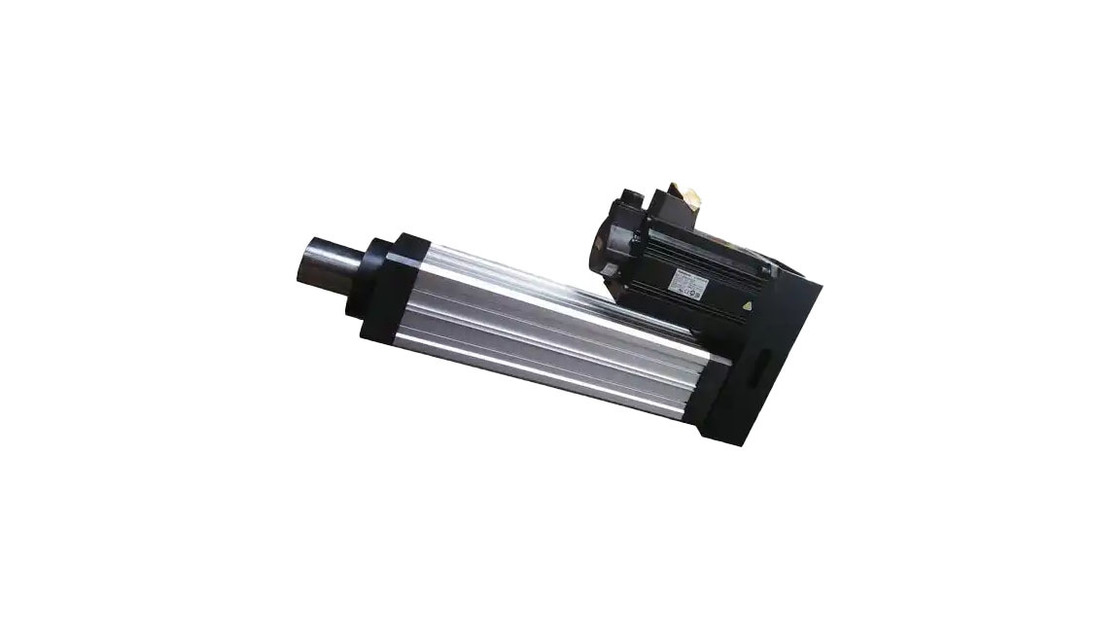

Compact Electric Cylinder
|
Standard Motor Output (W):
|
200W
|
Repeatable Positioning Accuracy(mm):
|
±0.02
|
Rated Torque(N ·m):
|
0.64
|
Screw Specification:
|
1210/1205
|
Max Load (kg):
|
40
|
Max Stroke(mm):
|
Standard:500 Optical Axis And Guideway Guide Cylinder:300
|
|
Name:
|
Compact Electric Cylinder
|
|
Standard Motor Output (W):
|
200W
|
|
Repeatable Positioning Accuracy(mm):
|
±0.02
|
|
Rated Torque(N ·m):
|
0.64
|
|
Screw Specification:
|
1210/1205
|
|
Max Load (kg):
|
40
|
|
Max Stroke(mm):
|
Standard:500 Optical Axis And Guideway Guide Cylinder:300
|
| Type | Standard motor output(W) | Rated torque (N*m) | Repeatable positioning accuracy (mm) | Screw specification | Max thrust (N) | Max speed (mm/s) | Max stroke (mm) | Max load (kg) | Screw grade | Piston rod rotation angle | Max drive torque (Nm) | Basic weight (0mm stroke) (kg) | Weight added per 100mm (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C12 | Stepper 28 | 0.09 | ±0.02 | 0802 | 220 | 40 | 100 | 5 | C7 Rolling 0802 (Slenderness ratio 1:50) | ±0.7 degree | 0.5 | 0.3 | 0.1 |
| C16 | 50W | 0.16 | ±0.02 | 802 | 400 | 100 | 300 | 8 | C7 Rolling 0802 (Slenderness ratio 1:50) | ±0.7 degree | 0.5 | 0.248 | 0.274 |
| C25 | 100W | 0.32 | ±0.02 | 1210 | 170 | 500 | Standard: 400 Optical axis: 250 |
20 | C5 Grinding 1205/1210 (Grinding 1:52.5) | Standard: ±0.7 degree Optical axis: ±0.06 degree |
0.8 | Standard: 0.587 | Standard: 0.485 |
| C32 | 200W | 0.64 | ±0.02 | 1205 | 690 | 250 | Standard: 500 Optical axis: 300 |
40 | C5 Grinding 1205/1210 (Slenderness ratio 1:52.5) | ±0.7 degree | 1.8 | 0.869 | 0.629 |
