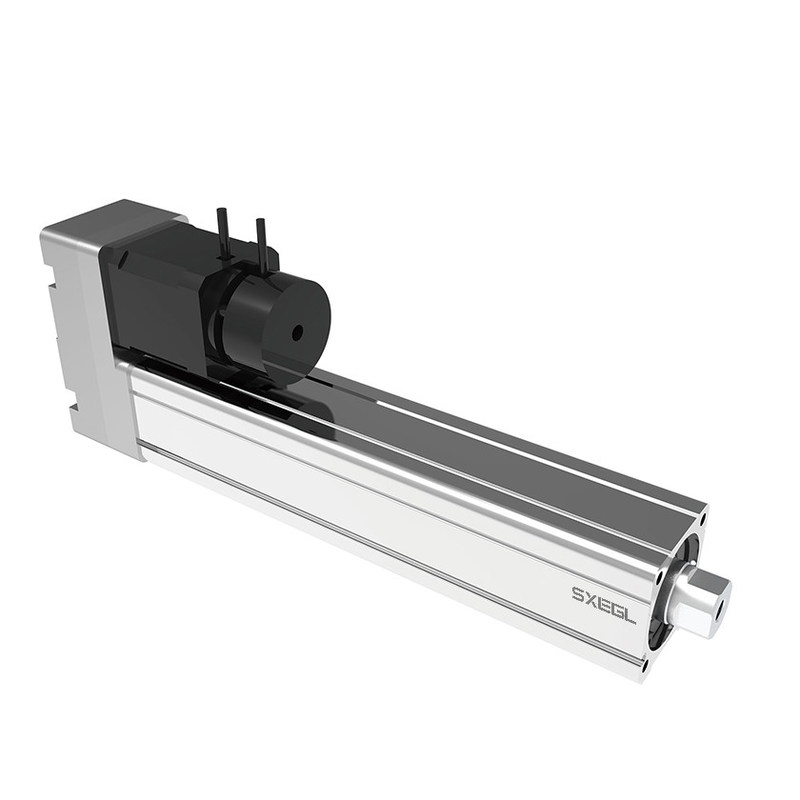

Direct Drive Compact Electric Cylinder 40mm/s With High Positioning Accuracy

The C Series compact electric cylinders are high-performance linear actuator units tailored for high-integration automation scenarios. Through deep integration of German precision mechanical design and intelligent control technology, they achieve 220N peak thrust (e.g., C12 model) within a minimum installation thickness of just 25mm.

Leveraging C7-class rolled ball screws with ±0.02mm repeat positioning accuracy, they redefine the industrial transmission standard of "compact size, high performance." With a 30% volume reduction compared to traditional cylinders, they have become core power components in fields such as 3C micro-assembly, portable medical devices, and semiconductor precision packaging.

• 3C Micro-Assembly Scenarios: At foldable phone hinge assembly stations, C12 electric cylinders (25mm thickness) are embedded into rotary table fixtures. With ±0.02mm precision, they complete micron-level pressing of hinge plates, reducing radial space by 30% compared to traditional φ32mm pneumatic cylinders.
• Portable Medical Device Scenarios: In portable blood coagulation analyzers, C16 micro electric cylinders drive 10μL micro-syringes. Their 92% transmission efficiency limits energy consumption per feed to <0.1mWh, enabling 24-hour continuous operation with lithium battery power.
• Semiconductor Precision Packaging Scenarios: Applied in TSV (Through-Silicon Via) packaging equipment for high-precision wafer-level alignment and bonding operations.

• Space-Optimized Design: Using topological optimization technology to compress non-load-bearing structures, the C Series achieves a 30% volume reduction compared to standard cylinders (with installation thickness as low as 25mm). Its modular design enables direct motor-screw connection, eliminating transmission backlash while saving space from coupling components--making it ideal for embedding into robotic arm joints, precision fixtures, and other confined cavities.
• Precision Transmission System: Equipped with C7-class precision rolled ball screws (2-5mm lead Muriel paired with preProvidence bearing sets, the series delivers ±0 twice positioning accuracy across the full stroke. With over 90% transmission efficiency (5% higher than traditional belt drives), it ensures low-power operation. In medical device applications driving micro-syringes, energy consumption is reduced by 40% compared to pneumatic solutions.
