Product Details
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: ES40
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 200-500
Packaging Details: Carton with foam
Delivery Time: 7-14
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: Worldwide delivery
|

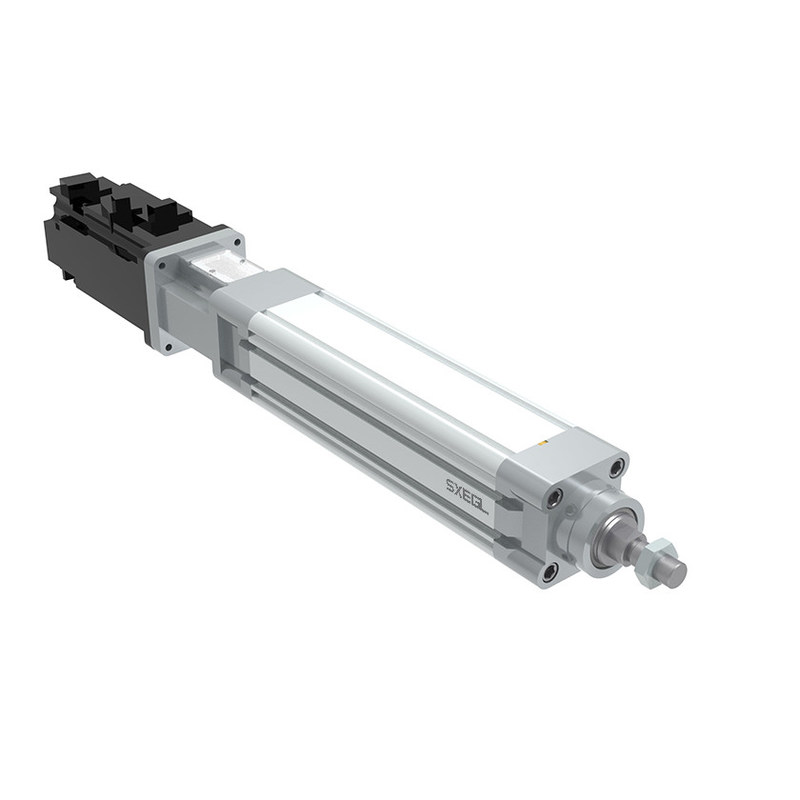

Name:
|
Electric Cylinder
|
Standard motor output (W):
|
200W / 400W
|
Rated torque(Nm):
|
0.64/1.27
|
Max Allowable Input Torque(Nm):
|
9
|
Screw Grade:
|
C7 Rolling (Slenderness Ratio1:62.5)
|
Repeatable Positioning Accuracy(mm):
|
±0.02
|
Standard motor output (W) 200W/400W Rated torque(Nm) 0.64/1.27 Max Allowable Input Torque(Nm) 9 Scr:
|
±0.5
|
|
Name:
|
Electric Cylinder
|
|
Standard motor output (W):
|
200W / 400W
|
|
Rated torque(Nm):
|
0.64/1.27
|
|
Max Allowable Input Torque(Nm):
|
9
|
|
Screw Grade:
|
C7 Rolling (Slenderness Ratio1:62.5)
|
|
Repeatable Positioning Accuracy(mm):
|
±0.02
|
|
Standard motor output (W) 200W/400W Rated torque(Nm) 0.64/1.27 Max Allowable Input Torque(Nm) 9 Scr:
|
±0.5
|
| Standard motor output (W) | 200W/400W |
|---|---|
| Rated torque(Nm) | 0.64/1.27 |
| Max allowable input torque(Nm) | 9 |
| Screw grade | C7 Rolling (Slenderness ratio1:62.5) |
| Repeatable positioning accuracy(mm) | ±0.02 |
| Piston rod rotation angle(°) | ±0.5 |
| Lead(mm) | 5 | 10 | 20 |
|---|---|---|---|
| Rated thrust(N) | 720/1440 | 360/720 | 180/360 |
| Max thrust in the axial direction(N) | 3040 | 2890 | 2400 |
| Max speed(mm/s) | 250 | 500 | 1000 |
| Stroke range(mm) | 0-800 |
|---|---|
| Basic weight Omm stroke (kg) | 1.6 |
| Weight added per 100mm(kg) | 0.61 |
| The component weight of direct installation motor(kg) | 0.3 |
| The component weight of indirect installation motor (kg) | 0.6 |
