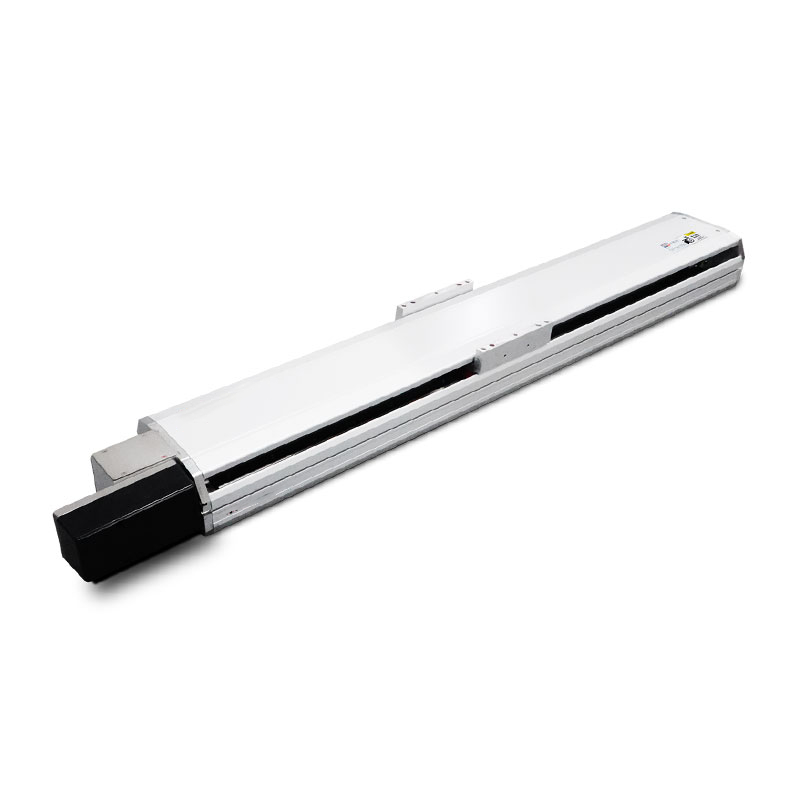

Multi Scenario Adaptable PCB Belt Modules With Synchronous Transmission

Name: Multi Scenario Adaptable PCB Belt Modules With Synchronous Transmission
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: PCB22
Price: 950.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SXEGL

Certification: CE/ROSH/EPA/FCC/ISO

Model Number: PCB22

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 400-1500

Packaging Details: Carton with foam

Delivery Time: 7-14

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Worldwide delivery

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            High Efficiency PCB Belt Modules, Multi Scenario Adaptable PCB Belt Modules


Repetitive Positioning Accuracy:	±0.08	Lead Mm:	40
Maximum Speed Mm/s:	2000	Freeze Thrust (N):	367
Standard Stroke Mm:	20-3500mm/50 Interval	AC Servo Motor Capacity:	750
Name:	Single Axis Robot

Repetitive Positioning Accuracy:	±0.08
Lead Mm:	40
Maximum Speed Mm/s:	2000
Freeze Thrust (N):	367
Standard Stroke Mm:	20-3500mm/50 Interval
AC Servo Motor Capacity:	750
Name:	Single Axis Robot

Multi Scenario Adaptable PCB Belt Modules With Synchronous Transmission

Multi scenario adaptable PCB belt series modules with high efficiency synchronous transmission

The PCB belt series linear modules boast a wide range of application scenarios, capable of facilitating rapid workpiece transfer in production lines, accurately performing adhesive film cutting operations, and efficiently connecting key processes such as workpiece handling between CNC machining machines. In terms of industrial applications, they are widely used in various fields, including the precision transmission links of TFT-LCD liquid crystal panel equipment, the component handling processes of solar energy equipment, the material conveying procedures of food packaging equipment, and the automated loading and unloading scenarios of CNC machining equipment. The types of PCB belts are divided into two categories based on working conditions: cleanroom belts are suitable for operating environments with high cleanliness requirements, while rubber belts are adapted to conventional working conditions.

The technical advantages of synchronous belt drive are particularly prominent: the PM-type high-tension toothed belt adopted, with its excellent structural design, achieves efficient transmission at 98%, and the maximum linear speed can reach 2m/s — which is twice the speed of traditional screw slides. Paired with lightweight aluminum alloy sliders, it not only reduces the motion load but also shortens the dynamic response time to 0.4s, significantly improving the operational efficiency of sorting and handling links.

In terms of stroke expansion capability, this module also performs excellently: the standard stroke covers 50-3500mm. Relying on advanced guide rail splicing technology, it can easily achieve seamless extension of ultra-long strokes, completely breaking away from the stroke bottleneck caused by the critical speed limitation of traditional screws. It is particularly suitable for scenarios such as long-distance material transfer in logistics conveyor lines and large-scale operations of shuttle cars in three-dimensional warehouses.

※ Basic specifications PCB22
Specification	Repetitive positioning accuracy		±0.08
	Lead mm		40
	Maximum speed mm/s		2000

	Freeze thrust (N)		367
	Standard stroke mm		20-3500mm/50 interval
	Max load (kg)	Horizontal	85
		Vertical	-
Component	AC servo motor capacity		750
	Belt width		45
	High rigidity linear slider		W23×H18
	Origin sensor plug-in		PM-T45(NPN)

Type

Repetitive positioning accuracy

Lead mm

Maximum speed mm/s

Screw specification

Freeze thrust(N)

Standard stroke mm

Max load (kg)

AC servo motor capacity

Belt width

High rigidity linear slider

Origin sensor plug-in

Horizontal

Vertical

PCB14

2000

100

20-3050mm/50 interval

W15×H12.5

PM-T45(NPN)

PCB17

±0.08

2000

204

20-3050mm/50 interval

400

W20×H15

PM-T45(NPN)

PCB22

±0.08

2000

367

20-3500mm/50 interval

750

W23×H18

PM-T45(NPN)

Please contact for drawings
