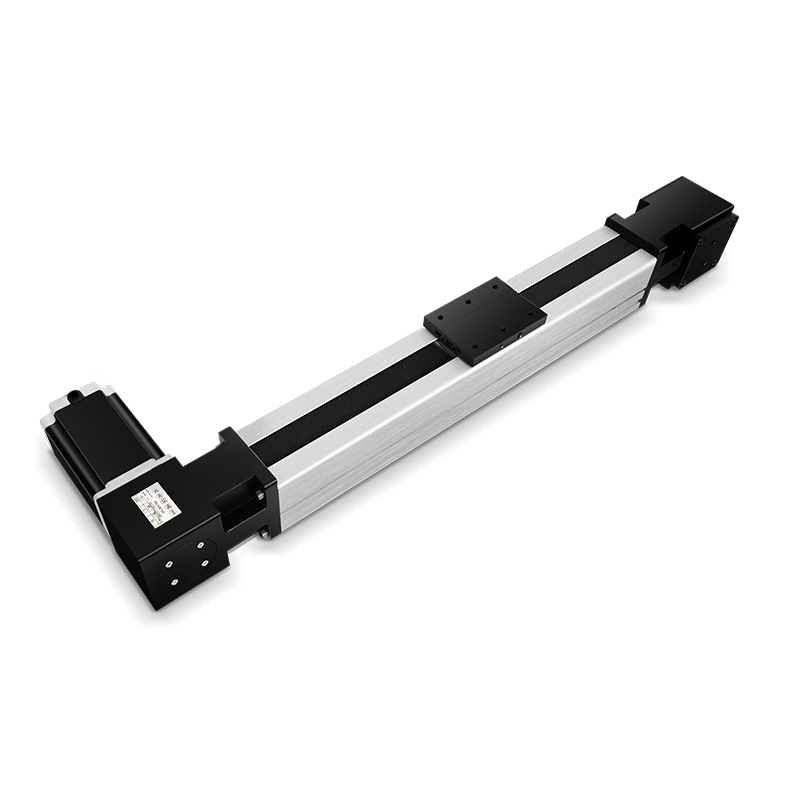

Flexible Protection PTH Series Semi Enclosed Screw Modulesn For Industrial Automation

Performance Features

• Flexible Protection: Boasting an IP54 dust and water resistance rating, they adopt a one-piece profile shield with a single-side sealing design. This effectively blocks large particulate dust and splashing liquids while facilitating quick disassembly and inspection of internal components, thereby enhancing maintenance efficiency.
• Precise and Stable Operation: Equipped with a standard C7-grade ball screw (with optional grades), they achieve a repeat positioning accuracy of ±0.01mm and maintain stability even at an operating speed of 1000mm/s, meeting the positioning requirements of mid-range equipment.
• High Rigidity and Adaptability: With a maximum horizontal load of 200kg and vertical load of 100kg, they cover a stroke range of 100-2000mm. Supporting multiple installation methods (horizontal, side-mounted, vertical), they are well-suited for diverse working conditions.
• Cost Optimization: Through localized adaptation of non-critical components, their cost is reduced by 20% compared to fully enclosed modules, making them ideal for supporting mass industrial equipment.

Application Scenarios

• Industrial Automation: Suitable for material handling in assembly lines, positioning axes of screw driving machines, and similar applications.
• Packaging Machinery: Applicable to sealing and cutting positioning in food and daily necessities packaging, easily bearing packaging molds with a load of 150kg.
• Warehousing Equipment: Compatible with pick-and-place robotic arms for smart shelves, with a 2000mm long stroke meeting the needs of multi-level cargo position transfer.
• 3C Auxiliary Manufacturing: Ideal for feed axes of mobile phone casing grinding equipment; their semi-enclosed design facilitates regular dust cleaning.

• Specification PTH17	Standard motor power (W)		750W
  	Repeatable positioning accuracy(mm)		±0.01
  	Screw specification		2005	2010	2020	2040
  	Max speed (mm/s)*1		250	500	1000	2000
  	Rated thrust (N)		2563	1281	640	320
  	Max load (kg)	Horizontal	120	95	83	43
  		Vertical	50	40	25	12
  	Max stroke(mm)*2		1250
  Component	Screw specification		2005/2010/2020/2040(Slenderness ratio1:70)
  	Screw grade		C7 rolling
  	High rigidity linear slider		W20×H15
  	Coupling		44-34-12-19
  	Photoelectric switch		PM-T45(NPN)

• Type	Standard motor power(W)	Repeatable positioning accuracy(mm)	Screw specification	Max speed (mm/s)	Rated thrust (N)	Max load (kg)		Origin sensor
  						Horizontal	Vertical
  PTH10	200W	±0.01	1605	250	683	50	12	-
  			1610	500	341	30	8
  			1616	800	213	22	5
  			1620	1000	174	18	3
  PTH12	200W	±0.01	1605	250	683	50	12	-
  			1610	500	341	30	8
  			1616	800	218	22	5
  			1620	1000	170	18	3
  PTH13	400W	±0.01	1605	250	1318	70	17	-
  			1610	500	694	47	12
  			1616	800	433	30	6
  			1620	1000	347	24	4
  PTH14	400W	±0.01	1605	250	1388	110	33	-
  			1610	500	694	88	22
  			1616	800	433	48	10
  			1620	1000	347	40	8
  PTH17	750W	±0.01	2005	250	2563	120	50	-
  			2010	500	1281	95	40
  			2020	1000	640	83	25
  			2040	2000	320	43	12
  PTH22	1000W	±0.01	3205	166	5100	200	100	-
  			3210	333	2550	200	80
  			3220	666	1275	100	50
  			3232	1062	795	80	40
  PTH27	-	±0.01	2505	250	2563	150	55	Plug:PM-T45(NPN)
  			2510	500	1281	150	45	Built-in:PM-Y45(NPN)
  			2525	1250	640	105	20
  Type	Standard stroke (mm)	Max stroke(mm)	Screw specification	AC servo motor capacity	Screw grade	High rigidity linear slider	Coupling	Photoelectric switch
  PTH10	-	1050	1605/1610 /1616/1620 (Slenderness ratio1:62.5)	-	C7 rolling	W20×H18	34-27-10-14	PM-T45(NPN)
  PTH12	-	1050	1605/1610 /1616/1620 (Slenderness ratio1:62.5)	-	C7 rolling	W12×H7.5	34-27-10-14	PM-T45(NPN)
  PTH13	-	1050	1605/1610 /1616/1620 (Slenderness  ratio1:62.5)	-	C7 rolling W15×H12.5 34-27-10-14	W15×H12.5	34-27-10-14	PM-T45(NPN)
  PTH14	-	1050	1605/1610 /1616/1620 (Slenderness  ratio1:62.5)	-	C7 rolling	W15×H12.5	34-27-10-14	PM-T45(NPN)
  PTH17	-	1250	2005/2010 /2020/2040 (Slenderness ratio1:70)	-	C7 rolling	W20×H15	44-34-12-19	PM-T45(NPN)
  PTH22	-	1700	3205/3210 /3220/3232	-	C7 rolling	W28×H26	55-78-22-22(24)	PM-T45(NPN)
  PTH27	50-1500mm /50 interval	-	-	750	C7025	W23×H18	17X19	-
