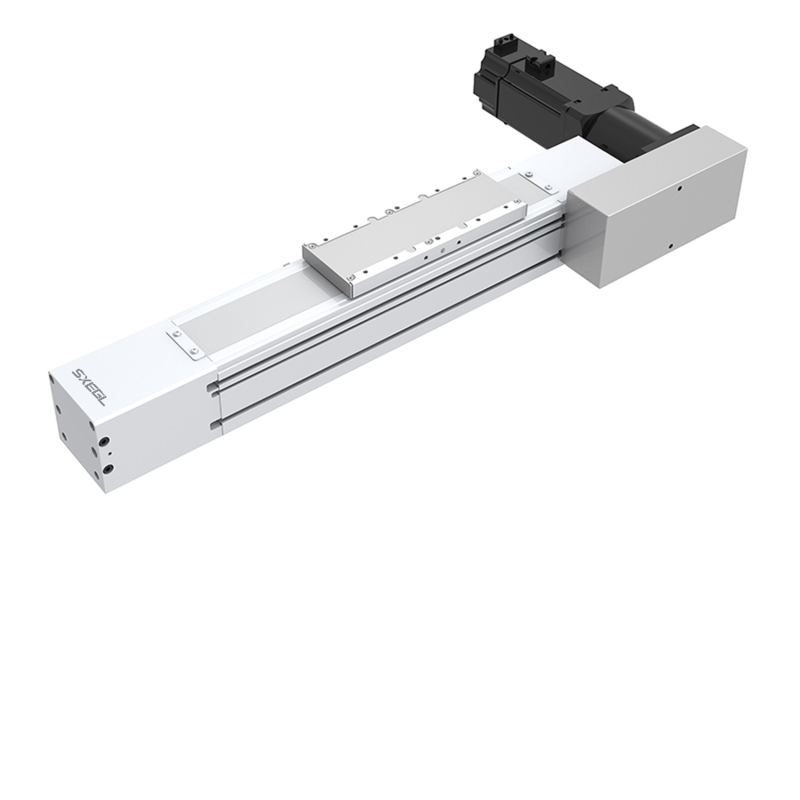

MK Series European Standard Timing Belt Slide: A Precision Driving Solution for European Industrial Scenarios

Focus on Real Industrial Scenarios: Multi-Domain Adaptation from Logistics to Manufacturing

• Logistics and Warehousing Automation: In intelligent sorting centers for cross-border e-commerce, the MK slide with a 5000mm stroke serves as the core of the main conveying axis, driving sorting carts at a speed of 2m/s. Its 200KG horizontal load easily carries full cartons of goods, and the ±0.1mm positioning accuracy ensures precise alignment at scanning stations, improving efficiency by 30% compared to traditional chain conveyors, making it an efficient choice for long-stroke material conveying.
• Automotive Assembly Production Lines: At chassis assembly stations, the MK slide, with a 50KG vertical load capacity, collaborates with robotic arms to form a cantilevered handling system, responsible for vertical lifting and horizontal transfer of engine components. Relying on its European standard interface design, it can be quickly integrated with existing KUKA robots in the workshop, significantly shortening the production line transformation cycle.
• Electronic Equipment Manufacturing: In LCD panel aging workshops, multiple MK slides with a 1000mm stroke form circular conveyor lines. The 50KG vertical load provides stable support for high-frequency movements of lifting jigs, while the ±0.1mm accuracy ensures reliable docking between panels and testing interfaces, perfectly meeting the stability requirements for 24-hour continuous operation.

Three Core Advantages: Technology Empowering Industrial-Grade Reliability

• High-Precision Positioning Guarantee: By equipping PM high-tension timing belts and precision-machined pulleys, combined with servo motor closed-loop control technology, it stably achieves ±0.1mm repeat positioning accuracy across the entire stroke, accurately matching the needs of mid-range positioning scenarios such as automatic labeling and workpiece transfer.
• Benchmark Performance in Horizontal Load: Adopting a dual-guide rail parallel layout and thickened aluminum alloy sliders, the horizontal dynamic load can reach up to 200KG, capable of directly carrying heavy components such as automobile gearboxes and industrial robot arms, with a 40% improvement in load capacity compared to traditional single-rail slides.
• Stable and Reliable Vertical Applications: Featuring a built-in anti-fall braking structure and combined with guide rail preloading technology, it effectively suppresses shaking during vertical lifting. It maintains stable operation under a maximum vertical load of 50KG, making it suitable for vertical operation scenarios such as automatic loading and unloading machines and stereoscopic warehouse stackers.
•

• ※ Basic specifications MK85
  Specification	Motor speed(rpm/min)			5:1	7:1	10:1
  	Max speed(mm/s)*1			2000	1428	1000
  	Max load(kg)		Horizontal	40	60	100
  			Vertical*2	14	21	24
  	Repeatable positioning accuracy(mm)			±0.1
  	Rated thrust(N)			340
  	Standard stroke(mm)*3			100-6000mm/100 interval
  Component	AC servo motor capacity(W)			750
  	Belt width (mm)			46
  	High rigidity linear slide(mm)			W20XH15
  	Origin sensor	Plug		PM-T45(NPN)

• Type	Motor speed(rpm/min)	Max speed(mm/s)*1	Max load(kg)		Repeatable positioning accuracy(mm)	Rated thrust(N)	Standard stroke(mm)*3	AC servo motor capacity(W)	Belt width(mm)	High rigidity linear slide(mm)	Origin sensor
  											Plug
  			Horizontal	Vertical*2
  MK65	3:1	1833	30	9	±0.1	220	100-6000mm/100mm interval	400	32	W15XH12.5	PM-T45(NPN)
  	5:1	1100	45	15
  	7:1	785	55	16
  	10:1	550	60	17
  MK85	5:1	2000	40	14	±0.1	340	100-6000mm/100 interval	750	46	W20XH15	PM-T45(NPN)
  	7:1	1428	60	21
  	10:1	1000	100	24
  MK110	10:1	1250	100	23	±0.1	765	100-6000mm/100 interval	750	50	W23XH18	PM-T45(NPN)
  	15:1	833	150	36
  	20:1	625	200	50
