Dust Proof PCB Belt Series Linear Modules Supporting Ultra Long Stroke Expansion

Product Details

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: PCB

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 400-3000

Packaging Details: Foam and cartonFoam and carton

Delivery Time: 7-14

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Worldwide delivery

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                    Dust proof Linear Modules, PCB Belt Series Linear Modules, Long Stroke Linear Modules


Lead Mm:	40	Maximum Speed Mm/s:	2000
Repetitive Positioning Accuracy:	±0.08	Freeze Thrust(N):	204
Standard Stroke Mm:	20-3050mm/50 Interval	AC Servo Motor Capacity:	400
Belt Width:	30	Name:	Single Axis Robot

Lead Mm:	40
Maximum Speed Mm/s:	2000
Repetitive Positioning Accuracy:	±0.08
Freeze Thrust(N):	204
Standard Stroke Mm:	20-3050mm/50 Interval
AC Servo Motor Capacity:	400
Belt Width:	30
Name:	Single Axis Robot

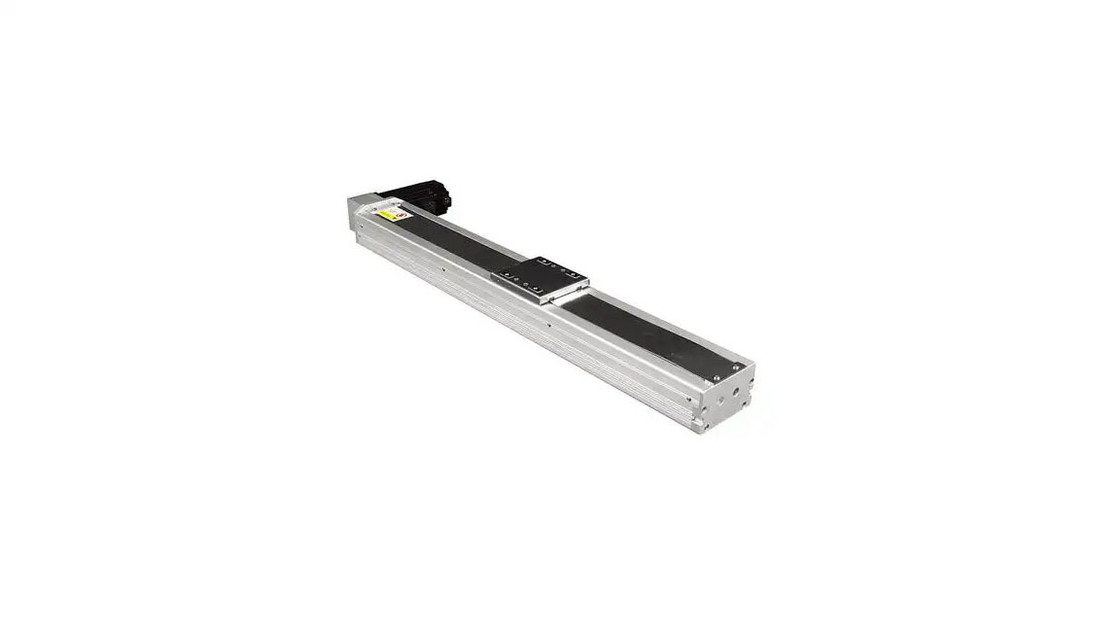

Dust Proof PCB Belt Series Linear Modules Supporting Ultra Long Stroke Expansion

Dust proof PCB belt series linear modules supporting ultra long stroke expansion

The scope of application of PCB belt series linear modules includes workpiece transfer devices in production lines, adhesive film cutting devices, transfer devices between CNC machining machines, and more. The applicable industries cover TFT-LCD liquid crystal panel equipment, solar energy equipment, food packaging equipment, and CNC machining equipment. The types of PCB belts include cleanroom belts and rubber belts.

Synchronous belt drive has obvious advantages: it adopts PM-type high-tension toothed belts with a transmission efficiency of 98%, and the maximum linear speed can reach 2m/s (compared to only 1m/s for traditional screw slides). Paired with lightweight aluminum alloy sliders, the dynamic response time is shortened to 0.4s, which can significantly improve sorting and handling efficiency.

In terms of stroke expansion, its standard stroke ranges from 50mm to 3500mm. Ultra-long stroke extension can be achieved through guide rail splicing technology, without worrying about the critical speed limitation of traditional screws. It is particularly suitable for long-distance operation scenarios such as logistics conveyor lines and three-dimensional warehouse shuttle cars.

※ Basic specifications PCB17
Specification	Repetitive positioning accuracy		±0.08
	Lead mm		40
	Maximum speed mm/s		2000

	Freeze thrust(N)		204
	Standard stroke mm		20-3050mm/50 interval
	Max load (kg)	Horizontal	45
		Vertical	-
Component	AC servo motor capacity		400
	Belt width		30
	High rigidity linear slider		W20×H15
	Origin sensor plug-in		PM-T45(NPN)
