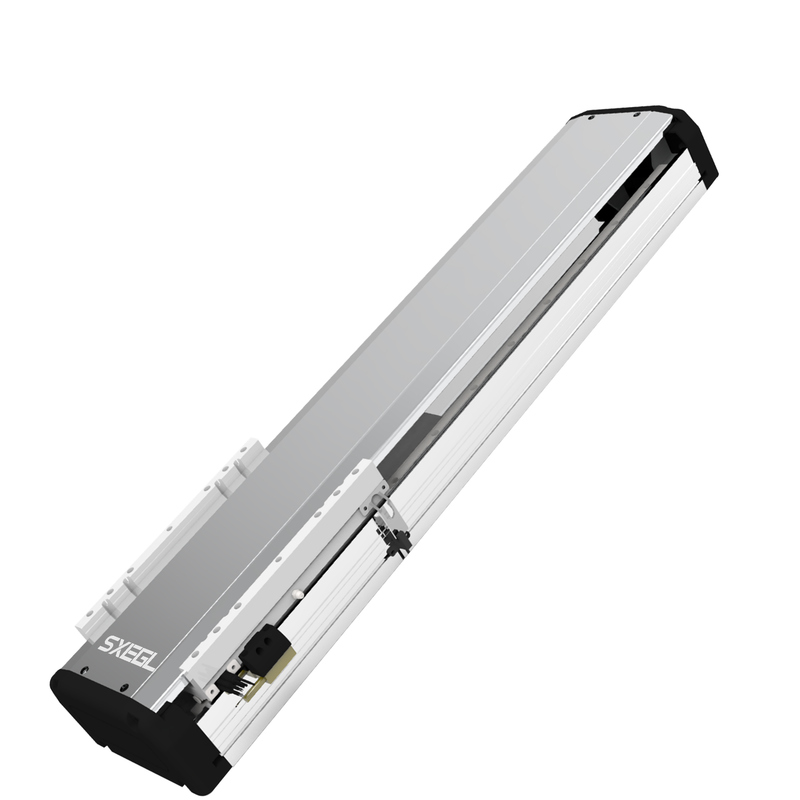

IP65 Dust Proof Precision Linear Motor Nanometer Level Maintenance Free

Name: IP65 Dust Proof Precision Linear Motor Nanometer Level Maintenance Free
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: DDL14/17/21 LMA-60/90/120
Price: 200 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SXEGL

Certification: CE/EPA/FCC/ROSH/ISO

Model Number: DDL14/17/21 LMA-60/90/120

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: 200

Packaging Details: Carton with foam

Delivery Time: 7-14

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: Worldwide delivery

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            Dust Proof Precision Linear Motor, IP65 Precision Linear Motor, Precision Linear Motor Nanometer Level


Name:	Precision Linear Motor	Type:	DDL14/17/21 LMA-60/90/120
Color:	Grey	Rail Specification:	W15 W20
Repeatable Positioning Accuracy(μm):	±5(Magnetic Scale)±2(Grating Ruler)

Name:	Precision Linear Motor
Type:	DDL14/17/21 LMA-60/90/120
Color:	Grey
Rail Specification:	W15 W20
Repeatable Positioning Accuracy(μm):	±5(Magnetic Scale)±2(Grating Ruler)

IP65 Dust Proof Precision Linear Motor Nanometer Level Maintenance Free

IP65 Dust Proof Linear Motor Nanometer Level Precision Maintenance Free

Core Value:
Simplifies mechanical structure, enhances transmission efficiency, breaks through the precision and speed bottlenecks of traditional transmission, and is suitable for high-end automation scenarios requiring direct drive.

Typical Application Fields

Industrial Manufacturing:
CNC machines (XYZ axis direct drive), laser processing equipment (high-speed cutting trajectory control), semiconductor wafer inspection platforms (nanometer-level positioning).
Medical & Research:
MRI scanner beds, surgical robot arms, spectroscopic analysis instruments (precision displacement adjustment).
Rail Transit & Logistics:
Maglev train traction systems, intelligent warehouse high-speed sorting lines (sorting speed > 200 pieces/minute).
Consumer Electronics & New Energy:
Mobile phone screen laminating machines, lithium battery electrode cutting equipment, photovoltaic module string welders (high-precision positioning).

Core Features

High Rigidity & Compact Structure
The LMA series integrates the sliding seat with the rotor, adopts embedded guide rails designed in an aluminum profile body, and integrates a grating scale for position feedback. This makes the entire module highly compact and rigid, offering users size optimization for specific thrust requirements.
Long Stroke
The LM series has a maximum standard stroke of 5,000 mm, and ultra-long strokes can be customized according to customer needs.
Multi-Mover Slides
Full-range linear motors can be equipped with multi-mover slides and controlled individually.
Customization
Linear motors can be customized for different customer applications, including mounting hole positions, output methods, appearance colors, and other custom designs.

Type	ParameterMotor	Resolution(μm) [Max speed](m/s)	Peak thrust(N)	Continuous thrust(N)	Maximum load(kg)※1	Moving part weight(kg)※2	Repeatable positioning accuracy(μm)
LMA-60	A	1[2];0.5[1.4];0.1[1]	176	44	5	0.6	±5
LMA-60	B	1[2];0.5[1.4];0.1[1]	268	67	10	0.85	±5
LMA-90	A	1[2];0.5[1.4];0.1[1]	240	120	12	1.5	±5
LMA-90	B	1[2];0.5[1.4];0.1[1]	360	180	18	2.1	±5
LMA-120	A	1[2];0.5[1.4];0.1[1]	400	200	20	4	±5
LMA-120	B	1[2];0.5[1.4];0.1[1]	600	300	30	5.5	±5

Rotor	Valid stroke(mm)	Reduce the stroke with each additional slide(mm)	Starting base length(mm)	Peak force(N)	Sustained force(N)	Rail specification	Number of sliders	Maximum load(Kg)	Rotor part weight(Kg)	Repeatable positioning accuracy (μm)
SL5003S	Base length-200	150	300	105	60	W15	2	7	2	±5(Magnetic scale)±2(Grating ruler)
SL5006S	Base length-250	200	300	210	120		4	15	3
SL5009S	Base length-300	250	396	315	180		4	23	3.9
Rotor	Valid stroke(mm)	Reduce the stroke with each additional slide(mm)	Starting base length(mm)	Peak force(N)	Sustained force(N)	Rail specification	Number of sliders	Maximum load(Kg)	Rotor part weight(Kg)	Repeatable positioning accuracy(μm)
SL8006	Base length-260	210	396	400	200	W15	4	25	4	±5(Magnetic scale)±2(Grating ruler)
SL8009	Base length-310	260	396	600	300		4	35	5
SL8012	Base length-360	310	492	800	400		6	45	6.6
Rotor	Valid stroke(mm)	Reduce the stroke with each additional slide(mm)	Starting base length(mm)	Peak force(N)	Sustained force(N)	Rail specification	Number of sliders	Maximum load(Kg)	Rotor part weight(Kg)	Repeatable positioning accuracy(μm)
SL8009	Base length-320	260	396	600	300	W20	4	45	6.6	±5(Magnetic scale)±2(Grating ruler)
SL8012	Base length-370	310	492	800	400		6	60	8.8
SL8015	Base length-420	360	492	1000	500		6	75	10.1
