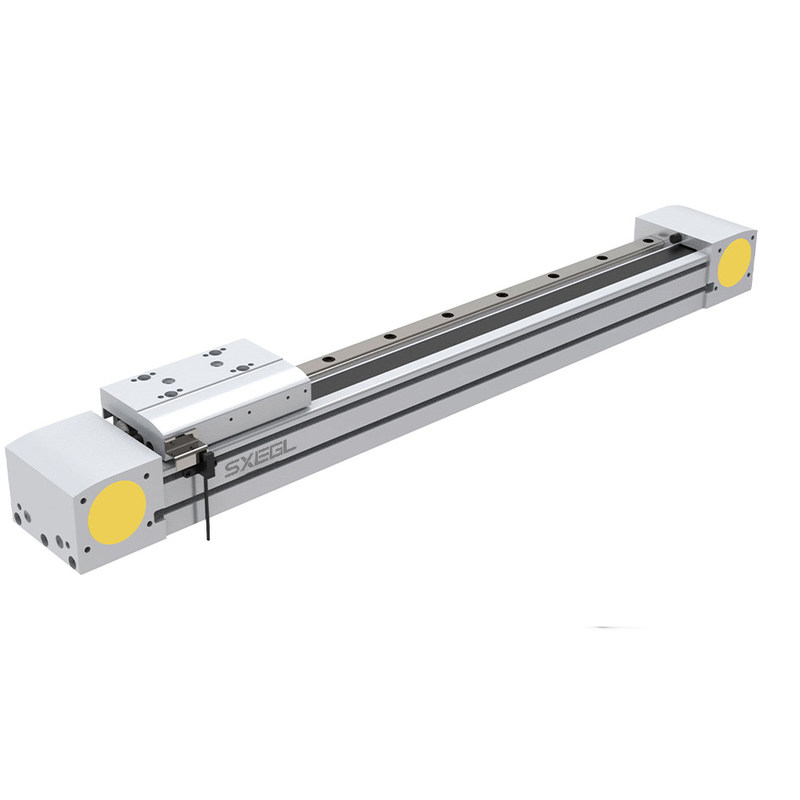

Long Stroke Synchronous Belt Slide Table 0.08mm Precision EU ROSH Certified

EU Certified Long Stroke  Series Synchronous Belt Slide Table  0.08mm Precision

Core Application Scenarios

1. Linear Gantry Systems
   In automotive assembly workshops, EGT slides serve as the X-axis (3000mm stroke) and Y-axis (2000mm stroke) in component handling gantries. With a 100kg load capacity, they effortlessly carry heavy components like gearboxes. The dual-guide rail design ensures no deflection under gantry span, while ±0.08mm accuracy meets the positioning requirements for bolt holes.
2. Cantilever Electric Cylinders
   In 3C electronics pick-and-place machines, EGT slides function as the X-axis (1000mm stroke) in cantilever mechanisms. The side-mounted motor design saves 50% vertical space, while anti-tipping torque characteristics ensure no offset under single-side loading (e.g., nozzle heads), enabling precise placement of 0402 components.
3. Logistics Sorting Lines
   In e-commerce warehouse automated sorting systems, EGT slides (5000mm stroke) act as main conveying axes. With a high speed of 2.5m/s and ±0.08mm accuracy, they drive sorting carts to achieve rapid positioning and delivery of parcels, improving efficiency by 35% compared to traditional chain conveyors.

Core Selling Points

1. Flexible Motor Mounting
   Motors can be installed on any of the four sides of the cylinder and easily converted as needed, offering maximum layout flexibility for complex automation setups.
2. Space-Saving Design
   Proximity switches can be embedded within the profile grooves, optimizing space utilization and simplifying cable management in compact equipment.
3. Precise Guidance & High Load Capacity
   The dual-guide rail system ensures superior linear guidance and stability, with robust load-bearing capabilities that make it ideal for heavy-duty applications in gantries and cantilever structures.
