Product Details
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: KK50
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $4-$999
Packaging Details: Carton
Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards
|
Name:
|
Single Axis Robot
|
Material:
|
Bearing Steel
|
Length:
|
100-1680mm
|
Service:
|
OEM Services
|
Structure:
|
CNC Components
|
Core Components::
|
Bearing, Motor
|
Application::
|
Automatic Equipment High Speed Transfer Device
|
|
Name:
|
Single Axis Robot
|
|
Material:
|
Bearing Steel
|
|
Length:
|
100-1680mm
|
|
Service:
|
OEM Services
|
|
Structure:
|
CNC Components
|
|
Core Components::
|
Bearing, Motor
|
|
Application::
|
Automatic Equipment High Speed Transfer Device
|

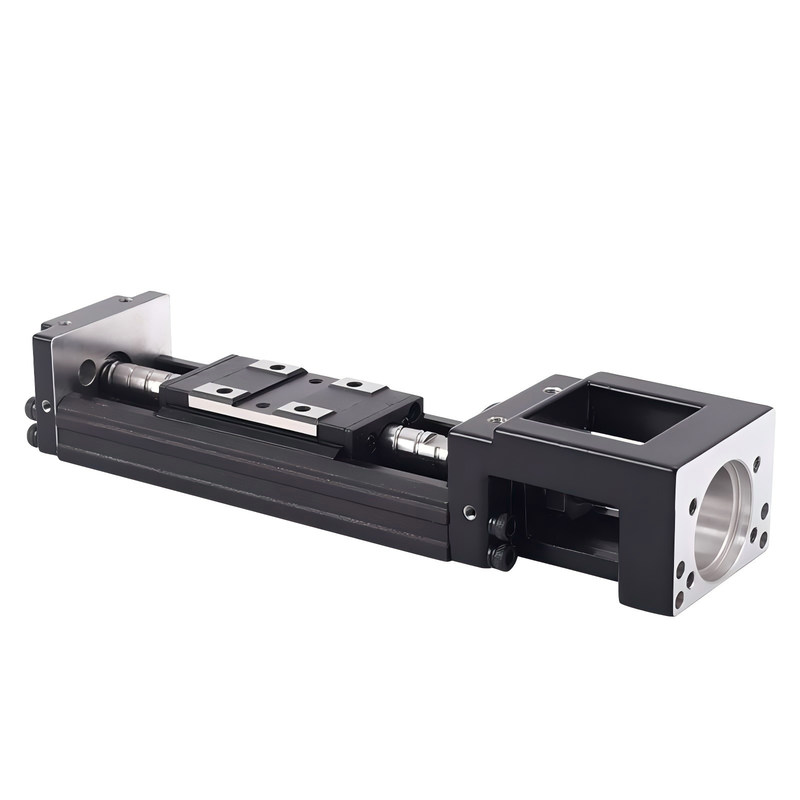

Precision Linear Modules KK86 CNC Retail Industries Core Bearing Block
SEXGL, a leading manufacturer of automation components, delivers high-performance Linear Motion Modules trusted by global partners including BYD (automotive systems) and BOE (display manufacturing). Our solutions power industrial operations across North America, Europe, Southeast Asia, South America, and South Korea, addressing diverse regional requirements from automotive welding to precision electronics assembly.A precision linear slide table module designed for industrial automation, featuring high rigidity, stable operation, and precise positioning. It enables rapid linear reciprocating motion and accurate positioning, widely used in applications such as CNC machine tools, robot arms, and automated inspection equipment.
| Model | Ball screw | Linear guideway | |||||||||||||||||||
| Screw diameter (mm) |
Lead (mm) |
Basic dynamic- rated load(N) |
Basic static- rated load (N) |
Basic dynamic- rated load (N) |
Basic static-rated load(N) |
Permissible static torque | |||||||||||||||
| Pitch M,(N-m) |
Yaw My(N-m) |
Roll M(N-m) |
|||||||||||||||||||
| Slide A | Slide s | Slide A | Slides | Slide A1 |
Slide A2 |
Slide S1 |
Slide S2 |
Slide A1 |
Slide A2 |
Slide S1 |
Slide S2 |
Slide A1 |
Slide A2 |
Slide S1 |
Slide S2 |
||||||
| KK8610 | Precision General |
15 | 10 | 7144 | 12642 | 31458 | 21051 | 50764 | 29475 | 622 | 3050 | 228 | 1309 | 622 | 3050 | 228 | 1309 | 1507 | 3014 | 847 | 1694 |
| 6429 | 11387 | ||||||||||||||||||||
| KK8620 | Precision General |
15 | 20 | 4645 | 7655 | 31458 | 21051 | 50764 | 29475 | 622 | 3050 | 228 | 1309 | 622 | 3050 | 228 | 1309 | 1507 | 3014 | 847 | 1694 |
| 4175 | 6889 | ||||||||||||||||||||
| Model | Track length | Positioning reproducibility |
Positioning accuracy | Walking parallelism | Maximum starting torque(N-cm) |
||||
| Precision | General | Precision | General | Precision | General | Precision | General | ||
| KK86 | 340 | ±0.003 | ±0.01 | 0.025 | - | 0.015 | - | 15 | 10 |
| 440 | |||||||||
| 540 | |||||||||
| 640 | |||||||||
| 740 | ±0.003 | ±0.01 | 0.030 | - | 0.020 | - | 17 | 10 | |
| 940 | ±0.003 | ±0.01 | 0.040 | - |
0.030 | - | 25 | 10 | |
| Model | Ball screw lead (mm) |
Track length L2(mm) |
Speed(mm/sec) | |
| Precision grade | General grade | |||
| KK86 | 10 | 340 | 740 | 520 |
| 440 | 740 | 520 | ||
| 540 | 740 | 520 | ||
| 640 | 740 | 520 | ||
| 740 | 740 | 520 | ||
| 940 | 610 | 430 | ||
| 20 | 340 | 1480 | 1050 | |
| 440 | 1480 | 1050 | ||
| 540 | 1480 | 1050 | ||
| 640 | 1480 | 1050 | ||
| 740 | 1480 | 1050 | ||
| 940 | 1220 | 870 | ||
KK86D without cover
| Unit:mm | ||||||||||
| Track length L2(mm) |
Overall length L1(mm) |
Max stroke(mm) | H(mm) | N | M | Weight(kg) | ||||
| A1 slide | A2 slide | A1 slide | A2 slide | |||||||
| 340 | 440 | 216.5 | 108.5 | 70 | 3 | 2 | 5.7 | 6.5 | ||
| 440 | 540 | 316.5 | 208.5 | 20 | 4 | 3 | 6.9 | 7.7 | ||
| 540 | 640 | 416.5 | 308.5 | 70 | 5 | 3 | 8.0 | 8.8 | ||
| 640 | 740 | 516.5 | 408.5 | 20 | 6 | 4 | 9.2 | 10.0 | ||
| 740 | 840 | 616.5 | 508.5 | 70 | 7 | 4 | 10.4 | 11.2 | ||
| 940 | 1040 | 816.5 | 708.5 | 70 | 9 | 5 | 11.6 | 12.4 | ||
