Product Details
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: SHF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $0.5-$21
Packaging Details: Carton
Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards
|
Features:
|
Sturdy And Durable, Non-slip Base
|
Name:
|
Shaft Support Bracket
|
Material:
|
Steel
|
Adjustability:
|
Adjustable Height And Tilt
|
Installation:
|
Easy To Install
|
|
Features:
|
Sturdy And Durable, Non-slip Base
|
|
Name:
|
Shaft Support Bracket
|
|
Material:
|
Steel
|
|
Adjustability:
|
Adjustable Height And Tilt
|
|
Installation:
|
Easy To Install
|

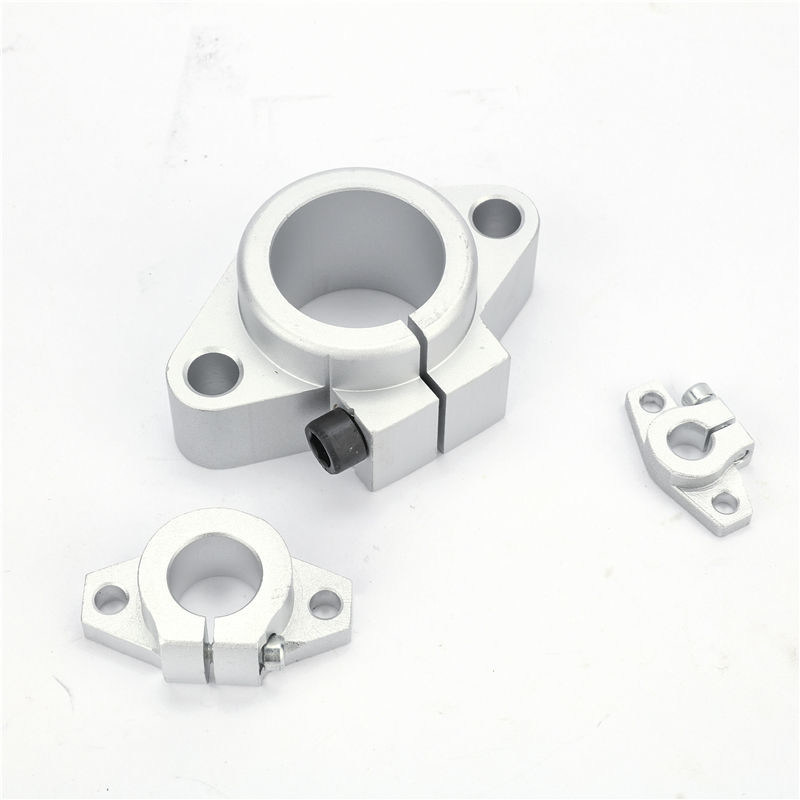

SHF Shaft Support Bracket 3mm - 60mm Shaft Supporter Long Service Life
SEXGL specializes in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea.
| Specification Type | Shaft diameter (mm) | Dimensions (mm) | Clamping Bolt | Clamping Bolt | Weight (g) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| W | L | T | F | G | B | S | |||||
| SHF 3 | 3 | 43 | 10 | 5 | 24 | 20 | 32 | 5.5 | M4 | M5 | 13 |
| SHF 4 | 4 | 43 | 10 | 5 | 24 | 20 | 32 | 5.5 | M4 | M5 | 13 |
| SHF 5 | 5 | 43 | 10 | 5 | 24 | 20 | 32 | 5.5 | M4 | M5 | 13 |
| SHF 6 | 6 | 43 | 10 | 5 | 24 | 20 | 32 | 5.5 | M4 | M5 | 13 |
| SHF 8 | 8 | 43 | 10 | 5 | 24 | 20 | 32 | 5.5 | M4 | M5 | 13 |
| SHF 10 | 10 | 43 | 10 | 5 | 24 | 20 | 32 | 5.5 | M4 | M5 | 13 |
| SHF 11 | 11 | 47 | 13 | 7 | 28 | 25 | 36 | 5.5 | M4 | M5 | 13 |
| SHF 13 | 13 | 47 | 13 | 7 | 28 | 25 | 36 | 5.5 | M4 | M5 | 13 |
| SHF 16 | 16 | 50 | 16 | 8 | 31 | 28 | 40 | 5.5 | M4 | M5 | 27 |
| SHF 20 | 20 | 60 | 20 | 9 | 37 | 34 | 48 | 7 | M5 | M6 | 40 |
| SHF 25 | 25 | 70 | 25 | 10 | 42 | 40 | 56 | 7 | M5 | M6 | 60 |
| SHF 30 | 30 | 80 | 30 | 12 | 50 | 46 | 64 | 7 | M6 | M8 | 100 |
| SHF 35 | 35 | 90 | 35 | 14 | 58 | 52 | 72 | 8 | M6 | M8 | 150 |
| SHF 40 | 40 | 102 | 40 | 16 | 67 | 56 | 80 | 8 | M8 | M10 | 330 |
| SHF 50 | 50 | 122 | 50 | 19 | 83 | 70 | 96 | 12 | M10 | M12 | 510 |
| SHF 60 | 60 | 140 | 60 | 23 | 95 | 82 | 112 | 14 | M12 | M12 | 890 |
| SHF 60 | 60 | 140 | 60 | 23 | 95 | 82 | 112 | 14 | M12 | M12 | 1500 |
