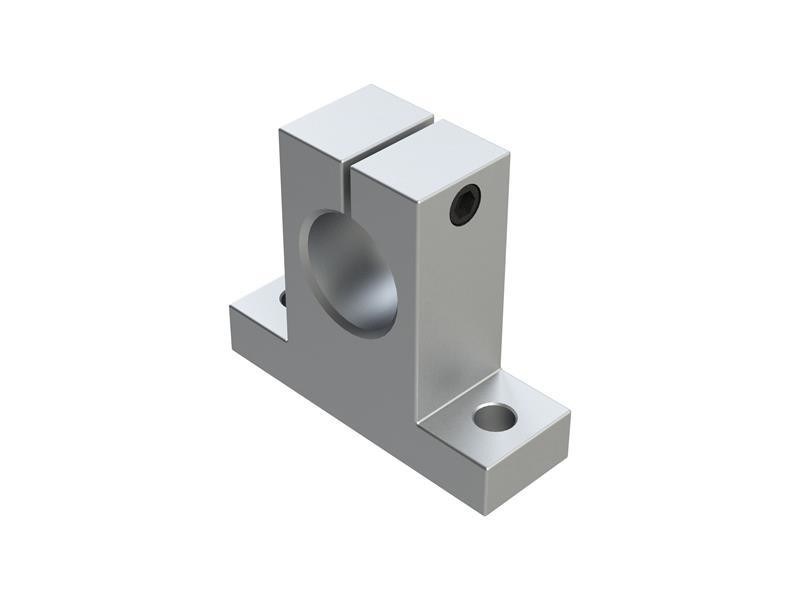

Custom Linear Shaft Support High Load Capacity SK16 Shaft Support

Product Details

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: SK

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $0.5-$21

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Custom Linear Shaft Support, High Load Capacity SK16 Shaft Support, SK16 Shaft Support Customized


Features:	Adjustable, Portable, Durable	Name:	Linear Shaft Support
Installation:	Easy To Install	Compatibility:	Compatible With Various Devices
Flexibility:	Adjustable For Different Devices	Size:	Various Sizes Available

Features:	Adjustable, Portable, Durable
Name:	Linear Shaft Support
Installation:	Easy To Install
Compatibility:	Compatible With Various Devices
Flexibility:	Adjustable For Different Devices
Size:	Various Sizes Available

Custom Linear Shaft Support High Load Capacity SK16 Shaft Support

Easy To Assemble And Interchange Linear Shaft Support Base High Load Capacity

SEXGL specializes in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea.

Key Characteristics

Smooth movement: Ensures smooth linear axis operation under both no-load and load conditions, reducing vibration and impact
Enhances processing accuracy and operational stability while extending equipment service life
Ideal for applications requiring high movement smoothness such as optical instruments and semiconductor manufacturing equipment

Maintenance Guidelines

Regularly inspect connection parts for looseness, wear condition, and lubrication state
Tighten any loose screws immediately
Replace components showing wear beyond specified ranges to maintain optimal performance

Technical Specifications

Support Type	Shaft Dimensions	Dimensinos(mm)	Locking Bolt	Clamping Bolt	Weight (g)
SK 8	8	20	21	42	14	32.8	6	18	32	5.5	M4	M5	24
SK 10	10	20	21	42	14	32.8	6	18	32	5.5	M4	M5	24
SK 12	12	23	21	42	14	37.5	6	20	32	5.5	M4	M5	30
SK 13	13	23	21	42	14	37.5	6	20	32	5.5	M4	M5	30
SK 16	16	27	24	48	16	44	8	25	38	5.5	M4	M5	40
SK 20	20	31	30	60	20	51	10	30	45	6.6	M5	M6	70
SK 25	25	35	35	70	24	60	12	38	56	6.6	M6	M6	130
SK 30	30	42	42	84	28	70	12	44	64	9	M6	M8	180
SK 35	35	50	49	98	32	82	15	50	74	11	M8	M10	270
SK 40	40	60	57	114	36	96	15	60	90	11	M8	M10	420
SK 50	50	70	63	126	40	120	18	74	100	14	M12	M12	750
SK 60	60	80	74	148	45	136	18	90	120	14	M12	M12	1100
