Product Details
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: LM
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $3.5-$141
Packaging Details: Carton
Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards
|
Name:
|

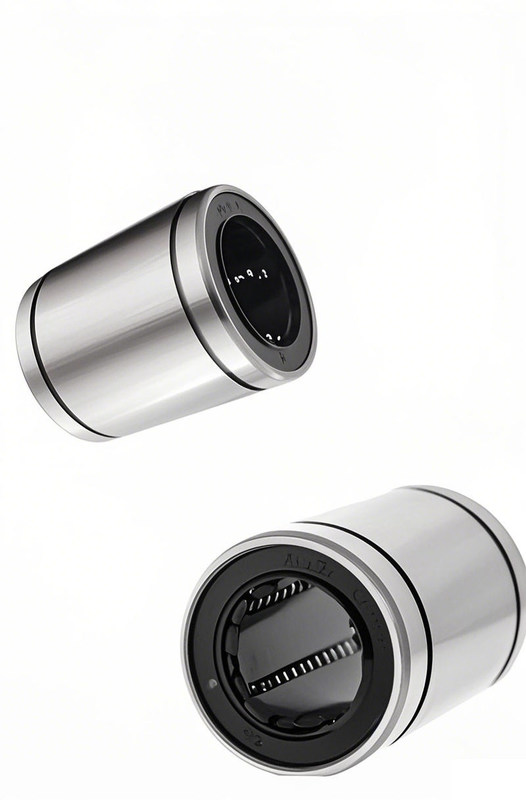

Linear Bearing
|
Type:
|
Linear,linear Motion Slide Ball Bearing
|
Feature:
|
Anti-friction,Low Noise,Long Life Linear Bearing LM6UU,Long Life,High Quality
|
Package:
|
Box,Plastic Bag,cartons,Plastic+carton Linear Bearing LM6UU,Plastic Bags/plastic Tube
|
Sample:
|
Available,accept
|
|
Name:
|
Linear Bearing
|
|
Type:
|
Linear,linear Motion Slide Ball Bearing
|
|
Feature:
|
Anti-friction,Low Noise,Long Life Linear Bearing LM6UU,Long Life,High Quality
|
|
Package:
|
Box,Plastic Bag,cartons,Plastic+carton Linear Bearing LM6UU,Plastic Bags/plastic Tube
|
|
Sample:
|
Available,accept
|
| Designation | Dimensions and Tolerances | Number of ball rows | Weight (g) | LM...AJ | LM...OP | Tolerances | dr (mm) | J | P |
|---|---|---|---|---|---|---|---|---|---|
| LM3UU | LM3CUU | 4 | 1.35 | - | - | 3 | 0 | 0 | -0.005 | -0.008 |
| LM4UU | LM4CUU | 4 | 1.9 | - | - | 4 | 0 | 0 | -0.005 | -0.008 |
| LM5UU | LM5CUU | 4 | 4 | - | - | 5 | 0 | 0 | -0.005 | -0.008 |
| LM6UU | LM6CUU | 4 | 8 | LM6-AJ | - | 6 | 0 | 0 | -0.005 | -0.008 |
| LM8SUU | LM8CSUU | 4 | 11 | LM8-AJ | - | 8 | 0 | 0 | -0.005 | -0.008 |
| LM8UU | LM8CUU | 4 | 16 | LM8-AJ | - | 8 | 0 | 0 | -0.005 | -0.008 |
| LM10UU | LM10CUU | 5 | 30 | LM10-AJ | LM10-OP | 10 | 0 | 0 | -0.006 | -0.009 |
| LM12UU | LM12CUU | 5 | 31.5 | LM12-AJ | LM12-OP | 12 | 0 | 0 | -0.006 | -0.009 |
| LM13UU | LM13CUU | 5 | 43 | LM13-AJ | LM13-OP | 13 | 0 | 0 | -0.006 | -0.009 |
| LM16UU | LM16CUU | 5 | 69 | LM16-AJ | LM16-OP | 16 | 0 | 0 | -0.006 | -0.009 |
| LM20UU | LM20CUU | 6 | 87 | LM20-AJ | LM20-OP | 20 | 0 | 0 | -0.007 | -0.01 |
| LM25UU | LM25CUU | 6 | 220 | LM25-AJ | LM25-OP | 25 | 0 | 0 | -0.007 | -0.01 |
| LM30UU | LM30CUU | 6 | 250 | LM30-AJ | LM30-OP | 30 | 0 | 0 | -0.007 | -0.01 |
| LM35UU | LM35CUU | 6 | 390 | LM35-AJ | LM35-OP | 35 | 0 | 0 | -0.008 | -0.012 |
| LM40UU | LM40CUU | 6 | 585 | LM40-AJ | LM40-OP | 40 | 0 | 0 | -0.008 | -0.012 |
| LM50UU | LM50CUU | 6 | 1580 | LM50-AJ | LM50-OP | 50 | 0 | 0 | -0.008 | -0.012 |
| LM60UU | LM60CUU | 6 | 2000 | LM60-AJ | LM60-OP | 60 | 0 | 0 | -0.009 | -0.015 |
| LM80UU | LM80CUU | 6 | 4420 | LM80-AJ | LM80-OP | 80 | 0 | 0 | -0.009 | -0.015 |
| LM100UU | LM100CUU | 6 | 8600 | LM100-AJ | LM100-OP | 100 | 0 | 0 | -0.01 | -0.02 |
| LM120UU | Lm120CUU | 8 | 14900 | LM120-AJ | LM120-OP | 120 | 0 | 0 | -0.01 | -0.02 |
| LM150UU | Lm150CUU | 8 | 20150 | LM150-AJ | LM150-OP | 150 | 0 | 0 | -0.013 | -0.025 |
