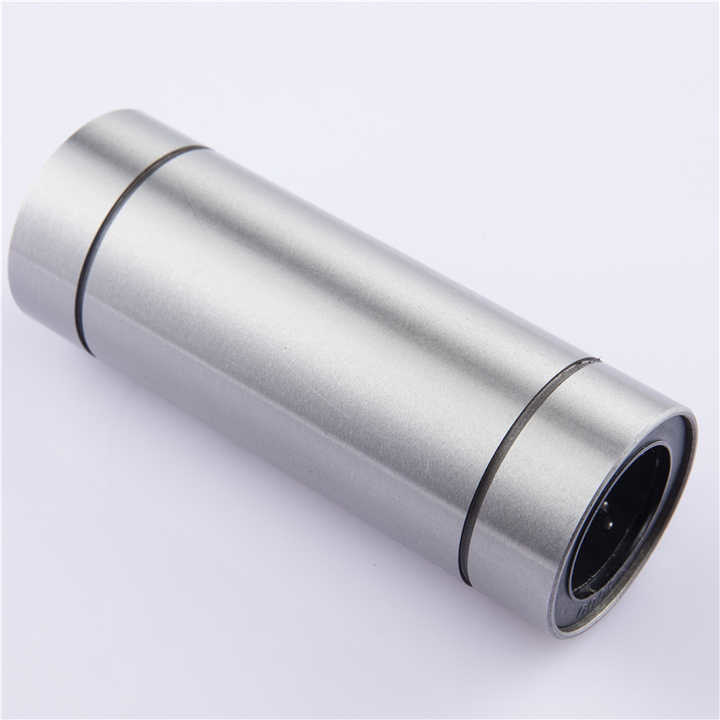

SXEGL High Speed Small Linear Bearing Anti Friction LM Bearing Wear Resistant

Name: SXEGL High Speed Small Linear Bearing Anti Friction LM Bearing Wear Resistant
Brand: SXEGL Intelligent Technology Co., Ltd.
SKU: LM...LUU
Price: 71.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: LM...LUU

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $3.5-$141

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                            High Speed Small Linear Bearing, Small Linear Bearing Anti Friction, LM Bearing Wear Resistant


Name:	Small Linear Bearing	Type:	Linear,linear Motion Slide Ball Bearing
Feature:	Anti-friction,Low Noise,Long Life Linear Bearing LM6UU,Long Life,High Quality	Performance:	High Speed
Operating Temperature:	-20°C To 80°C

Name:	Small Linear Bearing
Type:	Linear,linear Motion Slide Ball Bearing
Feature:	Anti-friction,Low Noise,Long Life Linear Bearing LM6UU,Long Life,High Quality
Performance:	High Speed
Operating Temperature:	-20°C To 80°C

SXEGL High Speed Small Linear Bearing Anti Friction LM Bearing Wear Resistant

SEXGL Linear Bearings deliver robust performance in demanding automation environments, trusted by industry leaders like BYD (automated welding systems) and BOE (LCD panel transport lines) across North America, Europe, Southeast Asia, and South America. Engineered to optimize load capacity, alignment stability, and operational longevity, our linear motion solutions are redefining precision across industries.

Key Characteristics

High sensitivity: Responds rapidly to tiny external forces or commands, achieving sensitive linear motion control
Ideal for automated equipment and precision instruments requiring high motion response speed and sensitivity

Installation & Maintenance Guidelines

Apply appropriate grease before installation and replenish during use
For metal linear bearings with grease lubrication: Remove anti-corrosion oil before adding grease (recommended: lithium soap grease with viscosity mark n0.2)
For oil lubrication: Select ISO viscosity grade VG15-100 lubricating oil based on temperature (not suitable for sealed bearings without holes)
Plastic linear bearings are self-lubricating and require no additional maintenance

Technical Specifications

Model	Number of ball rows	Weight (gf)	Inner diameter	Outer diameter	Tolerance
LM3LUU	4	3	3	7	0/-0.01 (inner), 0/-0.013 (outer)
LM3CLUU	4	3	3	7	0/-0.01 (inner), 0/-0.013 (outer)
LM4LUU	4	4	4	8	0/-0.01 (inner), 0/-0.013 (outer)
LM4CLUU	4	4	4	8	0/-0.01 (inner), 0/-0.013 (outer)
LM5LUU	4	8	5	10	0/-0.01 (inner), 0/-0.013 (outer)
LM5CLUU	4	8	5	10	0/-0.01 (inner), 0/-0.013 (outer)
LM6LUU	4	16	6	12	0/-0.01 (inner), 0/-0.013 (outer)
LM6CLUU	4	16	6	12	0/-0.01 (inner), 0/-0.013 (outer)
LM8LUU	4	31	8	15	0/-0.01 (inner), 0/-0.013 (outer)
LM8CLUU	4	31	8	15	0/-0.01 (inner), 0/-0.013 (outer)
LM10LUU	4	62	10	19	0/-0.01 (inner), 0/-0.016 (outer)
LM10CLUU	4	62	10	19	0/-0.01 (inner), 0/-0.016 (outer)
LM12LUU	5	80	12	21	0/-0.01 (inner), 0/-0.016 (outer)
LM12CLUU	5	80	12	21	0/-0.01 (inner), 0/-0.016 (outer)
LM13LUU	5	90	13	23	0/-0.01 (inner), 0/-0.016 (outer)
LM13CLUU	5	90	13	23	0/-0.01 (inner), 0/-0.016 (outer)
LM16LUU	5	145	16	28	0/-0.012 (inner), 0/-0.016 (outer)
LM16CLUU	5	145	16	28	0/-0.012 (inner), 0/-0.016 (outer)
LM20LUU	6	180	20	32	0/-0.012 (inner), 0/-0.019 (outer)
LM20CLUU	6	180	20	32	0/-0.012 (inner), 0/-0.019 (outer)
LM25LUU	6	440	25	40	0/-0.012 (inner), 0/-0.019 (outer)
LM25CLUU	6	440	25	40	0/-0.012 (inner), 0/-0.019 (outer)
LM30LUU	6	580	30	45	0/-0.012 (inner), 0/-0.019 (outer)
LM30CLUU	6	580	30	45	0/-0.012 (inner), 0/-0.019 (outer)
LM35LUU	6	795	35	52	0/-0.012 (inner), 0/-0.022 (outer)
LM35CLUU	6	795	35	52	0/-0.012 (inner), 0/-0.022 (outer)
LM40LUU	6	1170	40	60	0/-0.012 (inner), 0/-0.022 (outer)
LM40CLUU	6	1170	40	60	0/-0.012 (inner), 0/-0.022 (outer)
LM50LUU	6	2100	50	80	0/-0.02 (inner), 0/-0.025 (outer)
LM50CLUU	6	2100	50	80	0/-0.02 (inner), 0/-0.025 (outer)
LM60LUU	6	3500	60	90	0/-0.02 (inner), 0/-0.025 (outer)
LM60CLUU	6	3500	60	90	0/-0.02 (inner), 0/-0.025 (outer)
