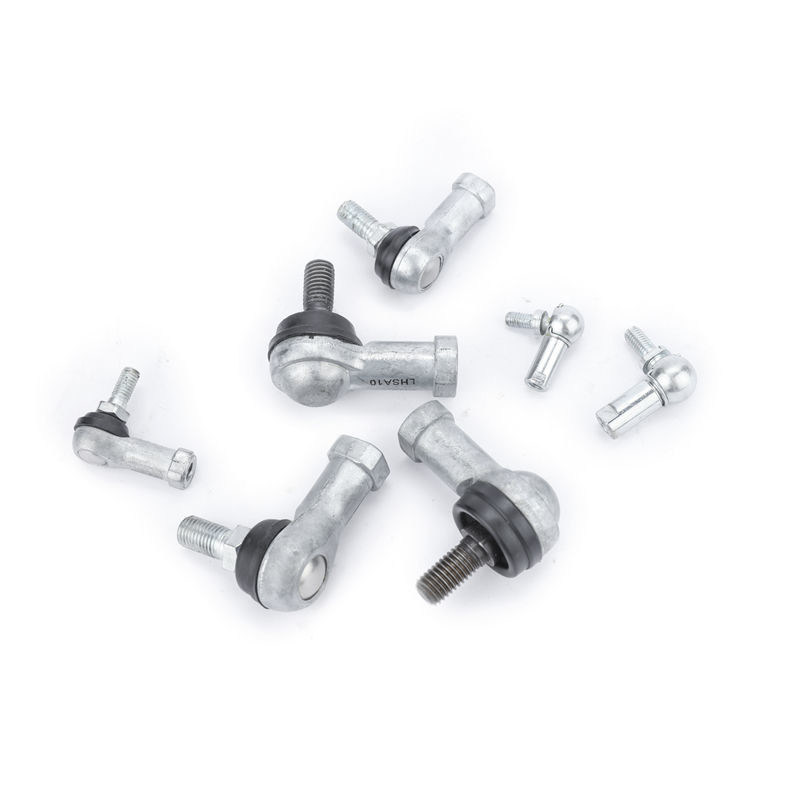

High Load S55C Rod End Bearing POS Heavy Duty Rod End Interchangeable

Product Details

Place of Origin: China

Brand Name: SXEGL

Certification: CE/FCC/EPA/ROSH/ISO

Model Number: POS

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: $0.5-$11

Packaging Details: Carton

Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.

Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay

Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards

Get Best Price

Chat Now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                            High Load Rod End Bearing, S55C Rod End Bearing, POS Heavy Duty Rod End


Name:	Rod End Bearing	Material:	S55C
Color:	Silver, Black	Length:	Customized
Nut Type:	Single Nut$ Double Nut	Structure:	CNC Components
Core Components:	Engine, Bearing, Motor, Pressure Vessel

Name:	Rod End Bearing
Material:	S55C
Color:	Silver, Black
Length:	Customized
Nut Type:	Single Nut$ Double Nut
Structure:	CNC Components
Core Components:	Engine, Bearing, Motor, Pressure Vessel

High Load S55C Rod End Bearing POS Heavy Duty Rod End Interchangeable

POS High Load Angular Flexibility Interchangeable Rod End Bearings Heavy Duty

SEXGL Heavy-Duty Rod End Bearings provide robust articulation solutions for heavy-load applications, trusted by BYD (suspension systems) and BOE (robotic arms) across North American, European, Southeast Asian, and South American industrial operations. Engineered for extreme durability and smooth angular compensation, our bearings ensure reliable performance in construction, automotive, and automation systems.

Technical Specifications

Model Number	Dimensions (mm)	Weight (Kg)	d	d3	B	C1	L1	d2	h	L2	dk	Ris	d1	a
POS5	5 M5×0.6	0.013	8	6	20	16	33	41	11.11	0.3	7.70	13	3.25	5.70
POS6	6 M6×1.0	0.020	9	6.75	22	18	36	45	12.70	0.3	8.96	13	4.30	7.20
POS8	8 M8×1.25	0.030	12	9	25	22	42	53	15.875	0.3	10.4	14	7.20	11.6
POS10	10 M10×1.5	0.055	14	10.5	29	26	48	61	19.05	0.3	12.9	13	10.0	14.5
POS12	12 M12×1.75	0.085	16	12	33	30	54	69	22.225	0.3	15.4	13	13.4	17.0
POS14	14 M14×2.0	0.14	19	13.5	36	34	60	77	25.40	0.3	16.9	16	17.0	24.0
POS16	16 M16×2.0	0.21	21	15	40	38	66	85	28.575	0.3	19.4	15	21.6	28.5
POS18	18 M18×1.5	0.28	23	16.5	44	42	72	94	31.75	0.3	21.9	15	26.0	42.5
POS20	20 M20×1.5	0.38	25	18	47	46	78	101	34.925	0.3	24.4	15	31.5	52.5
POS22	22 M22×1.5	0.48	28	20	51	50	84	111	38.10	0.3	25.8	15	38.0	57.0
POS25	25 M24×2.0	0.64	31	22	57	60	94	124	42.85	0.3	29.6	15	47.5	68.0
POS28	28 M28×2.0	0.96	35	24	62	66	103	136	47.60	0.3	32.3	15	58.0	75.5
POS30	30 M30×2.0	1.10	37	25	66	70	110	145	50.80	0.3	34.8	17	64.0	88.0
