Product Details
Place of Origin: China
Brand Name: SXEGL
Certification: CE/FCC/EPA/ROSH/ISO
Model Number: SFU
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $7-$50
Packaging Details: Carton
Delivery Time: Small orders usually takes 3-7 days,big order usually 20-35 days, depending on orders quantity and whether are standard size.
Payment Terms: Visa /Mastercard/PayPal/Apple Pay/Google Pay
Supply Ability: All products have passed CE certification and comply with EU RoHS environmental standards
|
Manufacturing Process:
|
Rolled Thread
|
Length:
|
10-160mm
|
Name:
|

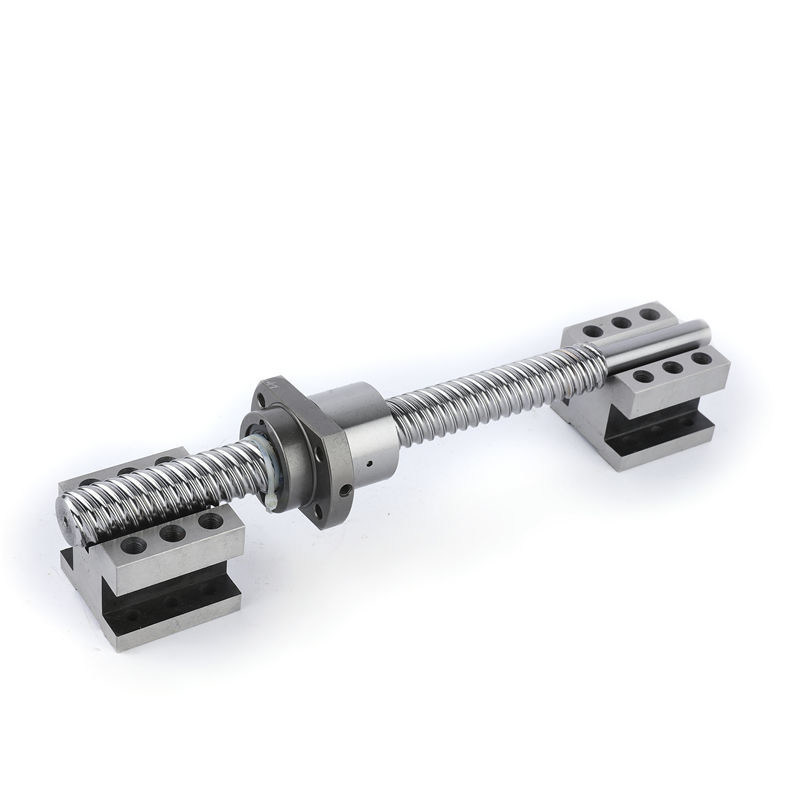

Linear Ball Screw
|
Material:
|
S55C,SCM420H
|
Nut Type:
|
Single Nut$ Double Nut
|
Application:
|
3D Printer/CNC Machine
|
Core Component:
|
Engine, Bearing, Motor, Pressure Vessel
|
|
Manufacturing Process:
|
Rolled Thread
|
|
Length:
|
10-160mm
|
|
Name:
|
Linear Ball Screw
|
|
Material:
|
S55C,SCM420H
|
|
Nut Type:
|
Single Nut$ Double Nut
|
|
Application:
|
3D Printer/CNC Machine
|
|
Core Component:
|
Engine, Bearing, Motor, Pressure Vessel
|
SEXGL ground ball screws deliver unparalleled accuracy and durability in high-precision automation systems, trusted by global leaders like BYD (EV powertrain assembly) and BOE (LCD panel cutting robots) across North America, Europe, Southeast Asia, and South Korea.
As a core transmission component for CNC machine tools, precision instruments, and automation equipment, ball screws achieve high-precision linear motion through a rolling friction pair design: precision balls fill the helical raceways between the screw shaft and nut, converting traditional sliding friction into point/line contact rolling friction with a friction coefficient as low as 0.0015-0.002.
This enables positioning accuracy of ±0.001mm over 300mm and repeat positioning accuracy of ±0.0005mm, ensuring micron-level precise displacement for moving components such as machine tool worktables and tool holders. These capabilities meet the stringent requirements of high-precision machining scenarios in aerospace, optical components, and other industries.
| Model no. | d | Lead | Bead diameter | (Nut size) | Dynamic Rating Load Ca | Static Rated Load Coa | D | A | B | L | W | H | X | Q | n |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SFUR1204-3 | 12 | 4 | 2.5 | 24 | 40 | 10 | 40 | 32 | 30 | 4.5 | M6×1 | 1×3 | 451 | 709 | |
| SFUR1604-3 | 16 | 4 | 2.381 | 28 | 48 | 10 | 36 | 38 | 40 | 5.5 | M6×1 | 1×3 | 488 | 940 | |
| SFUR1605-3 | 5 | 3.175 | 28 | 48 | 10 | 42 | 38 | 40 | 5.5 | M6×1 | 1×3 | 666 | 1143 |
