High Speed Slide Table 2000mm/s 0.1mm Precision

Linear Guide Rail
December 26, 2025
Category Connection: Linear Guide Rail
Chat Now Contact Us
Tags:
#Linear Slide Guide Rail #Ball Bearing Linear Guide #High Precision Linear Guide
Brief: Want to know how a slide table achieves 2000mm/s speed with 0.1mm precision? This video demonstrates the PTB Synchronous Belt Slide's performance in real industrial applications, showing how its high-load capacity, ultra-high-speed operation, and strong thrust output revolutionize logistics sorting, automotive assembly, and electronic component mounting processes.
Related Product Features:
  • Achieves ultra-high linear speeds up to 2311mm/s with 97% transmission efficiency for rapid material handling.
  • Maintains ±0.1mm repeat positioning accuracy for demanding applications like automotive powertrain assembly.
  • Supports horizontal dynamic loads up to 200KG while controlling deflection within 0.1mm/m.
  • Delivers strong thrust output of 1126N for reliable performance in precision pressing operations.
  • Offers flexible stroke configurations from 50mm to 4000mm to suit various automation requirements.
  • Features a high-rigidity dual-guide framework with ultra-precision ground surfaces (Ra≤0.2μm).
  • Utilizes modular rail splicing design for easy integration with multi-axis linkage systems.
  • Equipped with low-inertia servo motor direct-drive system for responsive millisecond-level operation.
  • Standardized interface designs enable rapid deployment across different industrial automation scenarios.
FAQs:
  • What is the maximum speed and load capacity of this slide table?
    The PTB Synchronous Belt Slide achieves maximum speeds up to 2311mm/s while supporting horizontal dynamic loads of 200KG, making it ideal for high-speed material handling applications.
  • How precise is the positioning accuracy of this linear motion module?
    It maintains ±0.1mm repeat positioning accuracy, ensuring reliable performance in precision assembly tasks like automotive component mounting.
  • What stroke lengths are available for different application needs?
    The slide table offers flexible stroke configurations ranging from 50mm to 4000mm, with short strokes (50-500mm) for precision tasks and long strokes (1000-4000mm) for cross-station handling.
  • In which industrial applications is this slide table most effective?
    It excels in intelligent logistics sorting hubs, precision automotive assembly lines, and high-precision electronic component mounting equipment.
Related Videos
Precision Linear Stage 200W 1050mm 00:12

Precision Linear Stage 200W 1050mm
Linear Guide Rail
December 26, 2025
Nano Linear Guides: Precision Motion Solved 00:12

Nano Linear Guides: Precision Motion Solved
Linear Guide Rail
December 26, 2025
Ultra Compact Linear Guide Precision Micron Vacuum Ready 00:12

Ultra Compact Linear Guide Precision Micron Vacuum Ready
Linear Guide Rail
December 26, 2025

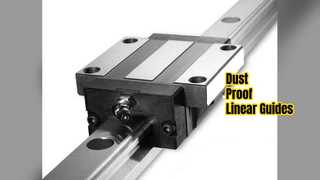

Dust Proof Linear Guides 15mm-63mm 00:12
